LC487 : Lung disease spectrum tissue array, including TNM and pathology grade, 24 cases/48 cores, replaced by LC487a
Description
| Microarray Panel |
Lung disease spectrum tissue microarray, containing 2 cases of normal lung tissue, 1 adjacent normal lung tissue, 3 each of lung hyperplasia of stroma and pulmonary fibrosis with chronic inflammation of bronchiole, 1 each of lung lobar pneumonia, pulmonary atelectasis and collapse of lung, 2 each of pulmonary tuberculosis, pulmonary emphysema and inflammatory pseudotumor, plus 1 lung small cell carcinoma, 2 lung adenocarcinoma and 3 lung squamous cell carcinoma, duplicate cores per case |
| Cores |
48 |
|
| Cases |
24 |
| Row number |
6 |
| Column number |
8 |
| Core Diameter (mm) |
2 |
| Thickness (µm) |
5 |
| Quality Control |
Anti-Actin confirmed |
| Tissue Array Type |
FFPE |
| Species |
Human |
| Applications |
Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page. |
| Notes |
1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning.
2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers. |

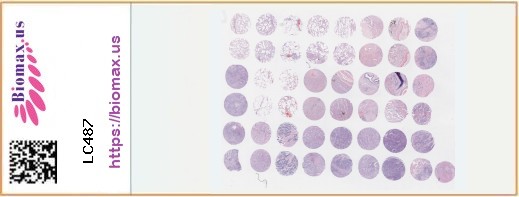

Mouseover and click individual cores to view high resolution images.
Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:
- Product Code: LC487
- Availability: Out Of Stock
|
Tags:
Stage (TNM),
Duplicate cores per case,
Normal tissue array,
With adjacent normal
- Borderline,
- Hyperplasia,
- Inflammation,
- Malignant tumor,
- Malignant tumor (stage I),
- Malignant tumor (stage II),
- Malignant tumor (stage IIIa),
- NAT,
- Normal tissue
