LY1001d : Diffuse large B-cell lymphoma (DLBCL )and mucosa associated lymphoma tissue array, including GC/Non-GC type and IHC marker (Bcl-6, MUM1, CD10), 100 cases/100 cores, replacing LY1001b
  • $397.00

0 reviews / Write a review

Microarray Panel Diffuse large B-cell lymphoma and mucosa associated lymphoma tissue microarray, containing 72 cases of diffuse large B-cell lymphoma, 28 mucosa associated lymphoma tissue, single core per case
Cores 100
TissueArray.Com Tissue Array LY1001d
Cases 100
Row number 10
Column number 10
Core Diameter (mm) 1
Thickness (µm) 5
Quality Control H&E and IHC confirmed
Tissue Array Type FFPE
Species Human
Applications Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page.
Notes 1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning. 2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.
In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers.
Mouseover and click individual cores to view high resolution images.

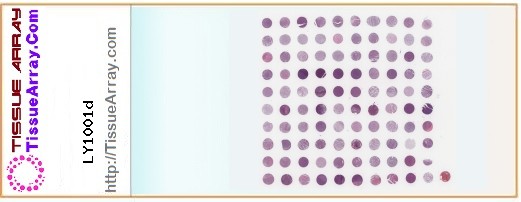

Slide Label: TissueArray.Com Tissue Array
12345678910
ALymLymLymIleIleColColColColCol
BTonSmaSmaSmaSmaSmaSmaSmaSmaSma
CSmaStoStoStoStoStoLivAdrAdrThy
DThyOvaOvaLymLymLymLymLymLymLym
ELymLymLymLymLymLymLymLymLymLym
FLymLymLymLymLymLymLymLymLymLym
GLymLymLymLymLymLymLymLymLymLym
HLymLymLymLymLymLymSplSplSplSki
IBonTesTesTesTesTesTesTesCerCer
JCerCerLunTonTonTonLymLymLymLymMarked point
Legend: Adr - Adrenal gland, Bon - Bone, Cer - Cerebrum, Col - Colon, Ile - Ileocecal junction, Liv - Liver, Lun - Lung, Lym - Lymph node, Ova - Ovary, Ski - Skin, Sma - Small intestine, Spl - Spleen, Sto - Stomach, Tes - Testis, Thy - Thyroid gland, Ton - Tonsil

- Malignant tumor

Specification Sheet (Sortable), tissue IDs are available in exported Excel files.

No.GC/Non-GCMUM1Bcl-6CD10
1 - +++ - -
2 - ++ + -
3 - +++ +++ +
4 - - + -
5 - - - -
6 - ++ ++ -
7 - - - -
8 - - + -
9 - +++ - -
10 - ++ + -
11 - - ++ -
12 - +++ - -
13 - +++ - -
14 - - - -
15 - * * *
16 - ++ +++ -
17 - +++ +++ -
18 - - - -
19 - + + -
20 - + + -
21 - * - *
22 - +++ - -
23 - - - -
24 - +++ ++ -
25 - + - -
26 - - +++ +
27 - + - -
28 - +++ - -
29 - +++ +++ -
30 - - - -
31 - - ++ -
32 - ++ ++ -
33 - +++ - +
34 Non-GC + + -
35 Non-GC +++ ++ -
36 Non-GC + +++ -
37 GC - +++ -
38 Non-GC +++ + -
39 Non-GC + +++ -
40 Non-GC ++ +++ -
41 Non-GC - - -
42 Non-GC +++ + -
43 Non-GC - - -
44 Non-GC + + -
45 GC +++ + +
46 Non-GC + - -
47 Non-GC +++ ++ -
48 Non-GC +++ + -
49 GC + ++ +
50 Non-GC - - -
51 GC - + +
52 GC - ++ ++
53 Non-GC - - -
54 Non-GC ++ + -
55 GC +++ ++ +
56 GC +++ + +
57 Non-GC - - -
58 Non-GC - - -
59 Non-GC +++ + -
60 GC + +++ +++
61 Non-GC - - -
62 GC - ++ -
63 GC - - +++
64 Non-GC + - -
65 GC - ++ -
66 Non-GC + + -
67 Non-GC + + -
68 Non-GC - - -
69 Non-GC + - -
70 Non-GC - - -
71 Non-GC + + -
72 Non-GC + + -
73 Non-GC +++ + -
74 Non-GC + - -
75 Non-GC - - -
76 Non-GC +++ +++ -
77 Non-GC - - -
78 Non-GC +++ +++ -
79 Non-GC - - -
80 Non-GC ++ - -
81 GC + +++ +++
82 Non-GC + + -
83 Non-GC +++ - -
84 Non-GC - - -
85 Non-GC + - -
86 Non-GC ++ ++ -
87 Non-GC +++ - -
88 Non-GC +++ + -
89 GC - +++ -
90 Non-GC ++ + -
91 GC - + -
92 GC - +++ -
93 Non-GC - - -
94 GC - + +
95 Non-GC + + -
96 Non-GC + +++ -
97 Non-GC + - -
98 GC - - +++
99 Non-GC +++ +++ -
100 Non-GC + - -
