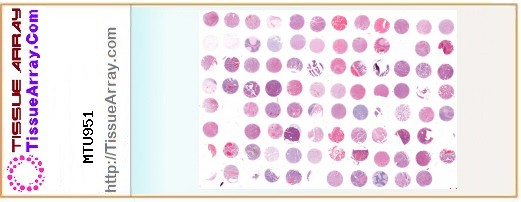

MTU951 : Multiple tumor tissue array covering 40 types of all the common benign, malignant and metastatic entities, 40 cases/95 cores.
Description
| Microarray Panel |
Multiple tumor tissue microarray, 40 types, covering most of the common benign, malignant and metastatic tumors originated from 27 anatomic sites (adrenal gland, bladder, bone, breast, cerebra (brain), rectum, kidney, liver, lung, lymph node, oranasopharynx, ovary, pancreas, prostate, salivary gland, skin, testis, thyroid and uterus endometrium). Majority of the tumors have duplicates or triplicates from different individuals with corresponding uninvolved tissues as controls. Most of the tissues were from surgical resection. Those highlighted by '* were from autopsy |
| Cores |
95 |
|
| Cases |
40 |
| Row number |
8 |
| Column number |
12 |
| Core Diameter (mm) |
1.5 |
| Thickness (µm) |
4 |
| Quality Control |
H&E, IHC anti-Vimentin/Cytokeratin |
| Tissue Array Type |
FFPE |
| Species |
Human |
| Applications |
Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page. |
| Notes |
1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning.
2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers. |
Mouseover and click individual cores to view high resolution images.
| Legend: | Adr - Adrenal gland,
Bla - Bladder, urinary,
Bon - Bone, scapula,
Bra - Brain,
Bre - Breast,
Eso - Esophagus,
Hea - Head and neck, nasal cavity,
Int - Intestine, rectum,
Kid - Kidney,
Liv - Liver,
Lun - Lung,
Lym - Lymph node,
Ova - Ovary,
Pan - Pancreas,
Pro - Prostate,
Ski - Skin, trunk,
Sto - Stomach,
Tes - Testis,
Thr - Thyroid,
Ute - Uterus, endometrium
 - ,
 - Benign tumor,
 - ,
 - Malignant tumor,
 - Metastasis,
 - Normal tissue
|
Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:
- Product Code: MTU951
- Availability: In Stock
|
