ST2161a : Multiple stomach cancer with normal tissue array, including pathology grade, TNM and clinical stage, 216 cases/216 cores(core size 1.0mm), replacing ST2161
  • $546.00

0 reviews / Write a review

Microarray Panel Multiple gastric carcinoma with normal tissue microarray, containing 172 cases of adenocarcinoma, 12 mucinous adenocarcinoma, 5 undifferentiated carcinoma, 6 signet-ring cell carcinoma, 3 carcinoid, 1 squamous cell carcinoma, 9 malignant mesenchymoma and 8 normal stomach tissue, single core per case
Cores 216
TissueArray.Com Tissue Array ST2161a
Cases 216
Row number 12
Column number 18
Core Diameter (mm) 1
Thickness (µm) 5
Quality Control H&E and IHC confirmed(TTF-1,Syn,CD117)
Tissue Array Type FFPE
Species Human
Applications Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page.
Notes 1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning. 2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.
In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers.
Mouseover and click individual cores to view high resolution images.

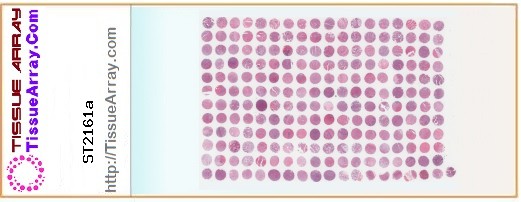

Slide Label: TissueArray.Com Tissue Array
123456789101112131415161718
AStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
BStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
CStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
DStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
EStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
FStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
GStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
HStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
IStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
JStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
KStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoSto
LStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoStoMarked point
Legend: Sto - Stomach

- Malignant tumor, - Malignant tumor (stage IA), - Malignant tumor (stage IB), - Malignant tumor (stage IIA), - Malignant tumor (stage IIB), - Malignant tumor (stage IIIA), - Malignant tumor (stage IIIB), - Malignant tumor (stage IV), - Normal tissue

Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:


Write a review

Please login or register to review
  Add to Favorite
  Print Specs into PDF
  Convert Specs to Excel

  • Product Code: ST2161a
  • Availability: Out Of Stock

Tags: High density, Stage (TNM), Normal tissue array, Single core per case
