BS04081a : Lung adenocarcinoma (grade III) with adjacent normal lung tissue array (2015 WHO classification), NSCLC, including pathology grade, TNM and clinical stage (AJCC 7th edition), 21 cases/63 cores, replacing BS04081
  • $138.00
Microarray Panel Lung adenocarcinoma (grade III) with adjacent normal lung tissue microarray, containing 20 cases of adenocarcinoma, 1 adjacent normal lung tissue, triplicate cores per case
Cores 63
TissueArray.Com Tissue Array BS04081a
Cases 21
Row number 7
Column number 9
Core Diameter (mm) 1.5
Thickness (µm) 5
Tissue Array Type FFPE
Species Human
Applications Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page.
Notes 1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning. 2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.
In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers.
Mouseover and click individual cores to view high resolution images.

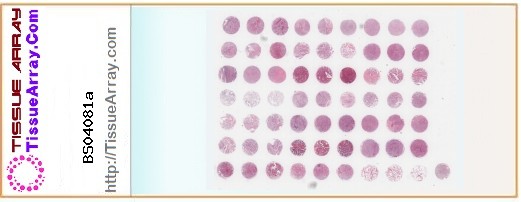

Slide Label: TissueArray.Com Tissue Array
123456789
ALunLunLunLunLunLunLunLunLun
BLunLunLunLunLunLunLunLunLun
CLunLunLunLunLunLunLunLunLun
DLunLunLunLunLunLunLunLunLun
ELunLunLunLunLunLunLunLunLun
FLunLunLunLunLunLunLunLunLun
GLunLunLunLunLunLunLunLunLunMarked point
Legend: Lun - Lung

- Malignant tumor, - Malignant tumor (stage IB), - Malignant tumor (stage IIA), - Malignant tumor (stage IIB), - Malignant tumor (stage IIIA), - NAT

Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:


Write a review

Please login or register to review

  • Product Code: BS04081a
  • Availability: In Stock

Tags: Stage (TNM), Triplicate cores per case, With normal control
