BS04116a : Small cell carcinoma with lung tissue array, including TNM and clinical stage (reference AJCC 8th version), 55 cases/100 cores, replacing BS04116
  • $306.00

0 reviews / Write a review

Microarray Panel Small cell carcinoma with lung tissue microarray, containing 45 cases of small cell carcinoma, 10 lung tissue, duplicated cores of carcinoma, single core of lung tissue
Cores 100
TissueArray.Com Tissue Array BS04116a
Cases 55
Row number 10
Column number 10
Core Diameter (mm) 1
Thickness (µm) 5
Quality Control H&E and IHC confirmed(NSE)
Tissue Array Type FFPE
Species Human
Applications Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page.
Notes 1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning. 2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.
In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers.
Mouseover and click individual cores to view high resolution images.

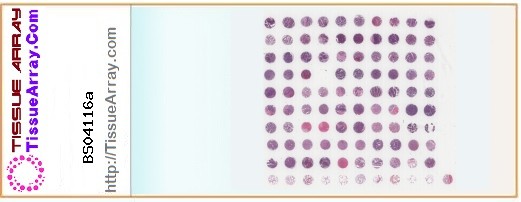

Slide Label: TissueArray.Com Tissue Array
12345678910
ALunLunLunLunLunLunLunLunLunLun
BLunLunLunLunLunLunLunLunLunLun
CLunLunLunLunLunLunLunLunLunLun
DLunLunLunLunLunLunLunLunLunLun
ELunLunLunLunLunLunLunLunLunLun
FLunLunLunLunLunLunLunLunLunLun
GLunLunLunLunLunLunLunLunLunLun
HLunLunLunLunLunLunLunLunLunLun
ILunLunLunLunLunLunLunLunLunLun
JLunLunLunLunLunLunLunLunLunLunMarked point
Legend: Lun - Lung

- Malignant tumor (stage IA2), - Malignant tumor (stage IA3), - Malignant tumor (stage IB), - Malignant tumor (stage IIA), - Malignant tumor (stage IIB), - Malignant tumor (stage IIIA), - Malignant tumor (stage IIIB), - Malignant tumor (stage IV), - Normal tissue

Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:


Write a review

Please login or register to review
  Add to Favorite
  Print Specs into PDF
  Convert Specs to Excel

  • Product Code: BS04116a
  • Availability: In Stock

Tags: Normal tissue array, Stage (TNM)
